Barcode Recognition SDK

Barcode Recognition SDK

Current Version: 5.0.50
Release Date: 18 Mar 2024

Barcode Reader SDK is a highly accurate and powerful developer library for Windows and Linux what recognizes 1-D and 2-D barcodes from digital images and bitmaps. Using this SDK you can integrate barcode recognition functionality into your software products. The following image formats are supported: BMP, JPG, PNG, TIF, multipage TIF and PDF (Portable Document Format). The unique and fast barcode recognition algorithm detects and recognizes barcodes from your images whatever the position and orientation.

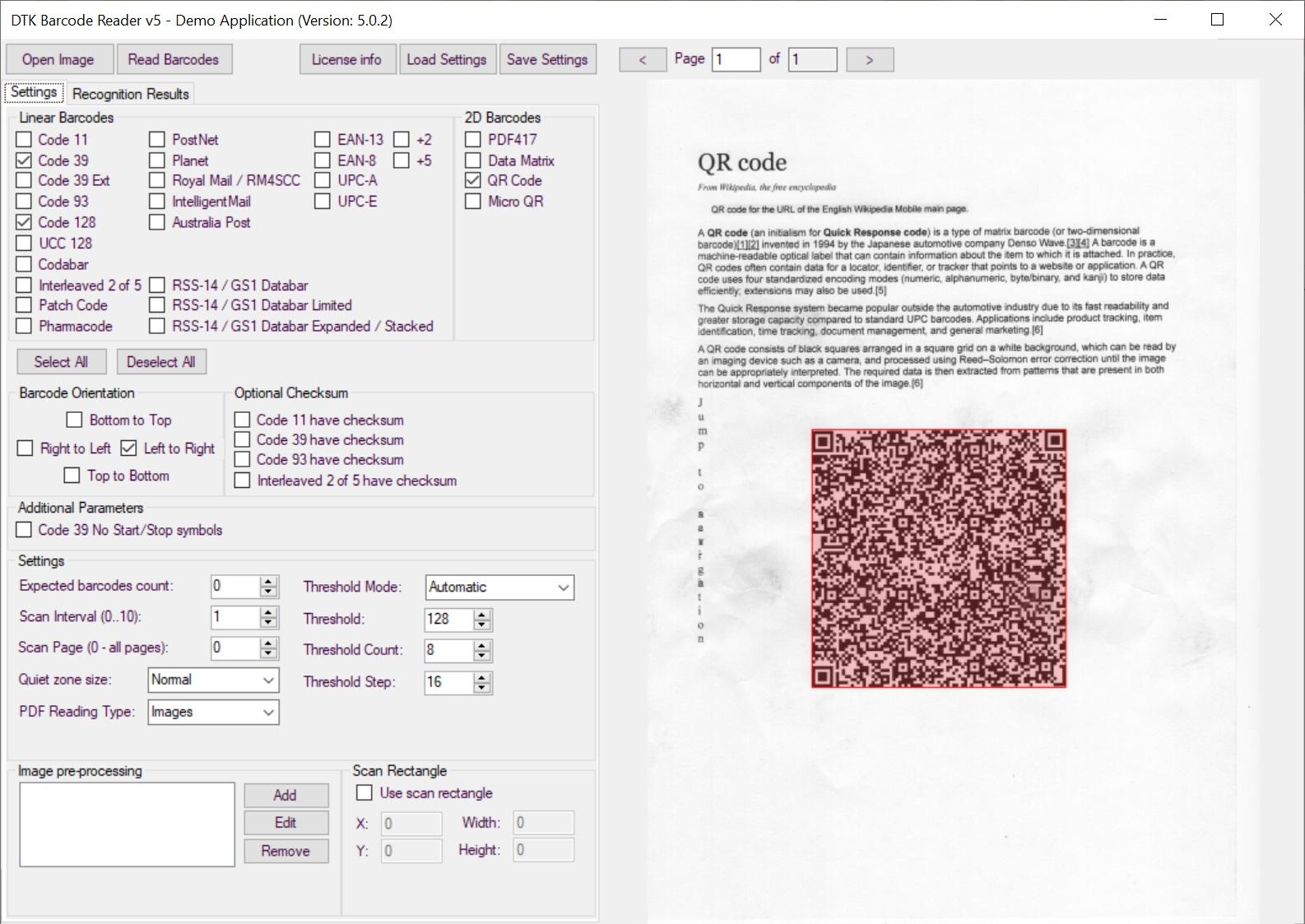

DTK Barcode Reader SDK configuration DTK Barcode Reader SDK result

Barcode Reader returns the following information for each barcode:

  • Barcode data (text or bynary format)
  • Barcode type
  • Barcode rotation angle in degrees
  • Barcode location (start/stop bars coordinates)
  • Page number (for multipage TIFF or PDF)
  • Barcode dimensions (for 2D barcodes)
  • Error Correction Level (for 2D barcodes)
  • Number of errors corrected (for 2D barcodes)
  • Properties related to the specific barcode type

Supported barcode types

1-D barcodes:
  • Code 11
  • Code 39
  • Code 39 Extended
  • Code 93
  • Code 128
  • UCC 128
  • 2of5 Interleaved
  • Codabar
  • Patch Code
  • Pharmacode
  • EAN 8
  • EAN 13
  • UPC A
  • UPC E
  • Add 2
  • Add 5
  • GS1 Databar/RSS-14
  • GS1 Databar/RSS Limited
  • GS1 Databar/RSS Expanded
  • GS1 Databar/RSS Expanded Stacked
Postal barcodes:
  • PostNet
  • Planet
  • RM4SCC
  • AustraliaPost
  • IntelligentMail
2-D barcodes:
  • PDF417
  • Compact PDF417
  • Data Matrix
  • QR Code
  • Micro QR Code

The following C# code example demonstrates a simple code for reading barcodes from images
private void btnReadBarcode_Click(object sender, EventArgs e)
{
    BarcodeReader barReader = new BarcodeReader();
    barReader.BarcodeTypes = BarcodeTypeEnum.BT_Code39 | BarcodeTypeEnum.BT_QRCode;
    BarcodeReaderResult result = barReader.ReadFromFile("C:/Images/test.jpg");
    foreach (Barcode bar in result.Barcodes)
    {
        Console.WriteLine("Barcode: {0} Type: {1}", bar.Text, bar.TypeString);
    }
}

Links

Supported Operating Systems

  • Windows 32/64-bit (7/8/10/11/Server 2008/2012/2016/2019/2022)
  • Linux (32/64bit, armhf, arm64)
window and linux icons

Downloads

To download the full or trial version of the software, please go to the Downloads page.
